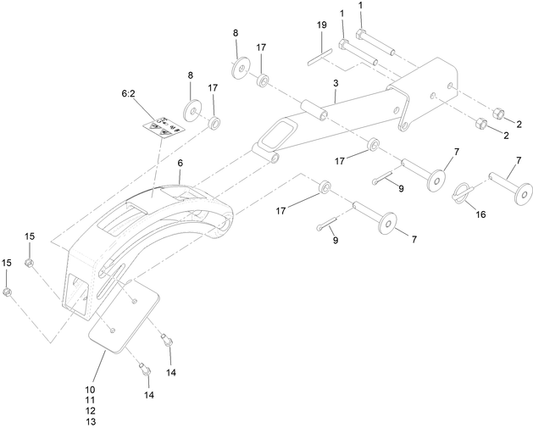

Collection: Trencher Crumber Model 22477 Parts Diagram
-
22477 - Complete Trencher Crumber 22477
Regular price $880.00 USDRegular priceUnit price per -
325-14 - Reference Number 1 - Bolt
Regular price $2.49 USDRegular priceUnit price per -
32146-13 - Reference Number 2 - Nut
Regular price $3.29 USDRegular priceUnit price per -
117-3426-03 - Reference Number 3 - Crumber Support Assembly
Regular price $208.98 USDRegular priceUnit price per -
117-8856 - Reference Number 6 - Crumber Slide
Regular price $247.39 USDRegular priceUnit price per -
115-1497 - Reference Number 6:2 - Warning Decal
Regular price $10.43 USDRegular priceUnit price per -
100-6271-03 - Reference Number 7 - Pin
Regular price $36.29 USDRegular priceUnit price per -
104-8419 - Reference Number 8 - Washer
Regular price $1.82 USDRegular priceUnit price per -
3272-30 - Reference Number 9 - Cotter Pin
Regular price $0.45 USDRegular priceUnit price per -
117-3456-03 - Reference Number 10 - 4 Inch Plate Deflector
Regular price $16.21 USDRegular priceUnit price per -
117-3457-03 - Reference Number 11 - 6 Inch Plate Deflector
Regular price $23.13 USDRegular priceUnit price per -
117-3458-03 - Reference Number 12 - 8 Inch Plate Deflector
Regular price $29.34 USDRegular priceUnit price per -
117-3459-03 - Reference Number 13 - 12 Inch Plate Deflector
Regular price $36.18 USDRegular priceUnit price per -
323-6 - Reference Number 14 - Bolt
Regular price $0.66 USDRegular priceUnit price per -
603773 - Reference Number 15 - Nut
Regular price $1.99 USDRegular priceUnit price per -
107-3039 - Reference Number 16 - Lynch Pin
Regular price $8.99 USDRegular priceUnit price per
